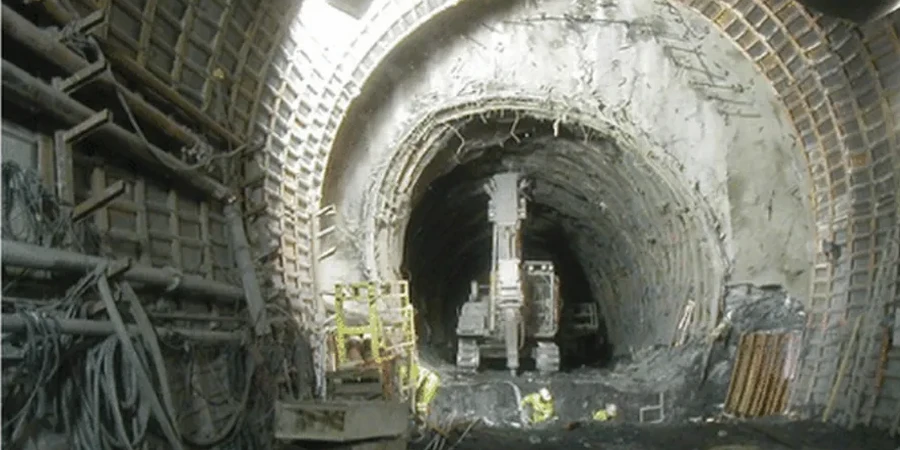

Geotechnical analysis for soft soil tunnels in Belleville Ontario

The Leda clay in Belleville Ontario is a sensitive, post-glacial marine deposit with a metastable structure. Its undrained shear strength can drop from 40–50 kPa intact to below 10 kPa when remolded, meaning any excavation-induced disturbance weakens the soil dramatically. Additionally, its high water content (50–80%) and low hydraulic conductivity create persistent pore pressure conditions that complicate face drainage and extend consolidation settlement timelines by months or years after lining installation.

The core testing suite includes consolidated-undrained triaxial tests with pore pressure measurement (ASTM D4767) to define effective stress parameters c' and φ', one-dimensional consolidation tests (ASTM D2435) for settlement prediction, and fall cone liquid limit tests (ASTM D4318) to quantify sensitivity. For critical alignments beneath Belleville Ontario infrastructure, we add constant-volume direct simple shear tests to capture the strain-softening behavior that governs face stability and trough width.

We use the empirical Gaussian trough method with trough width parameter K calibrated to Ontario soft-ground case histories, then refine predictions through coupled hydro-mechanical finite-element models. These models account for the low hydraulic conductivity of Belleville clay (10⁻⁹ to 10⁻¹⁰ m/s), which means volume change and settlement continue long after excavation. The analysis distinguishes between immediate undrained deformation, short-term consolidation during construction, and long-term creep effects.

With groundwater at 1.5 to 2.5 meters below grade in the Moira River corridor, a tunnel at typical depth of 10–15 meters experiences a hydrostatic head of 8 to 13 meters at the face. This pore pressure reduces effective confining stress and promotes seepage forces toward the excavation. Face stability analysis must include seepage calculations; the stability number N = (σv + u0 − σt) / Su incorporates pore pressure u0 explicitly, and in Belleville Ontario this often controls the required face support pressure for EPB or slurry TBMs.
