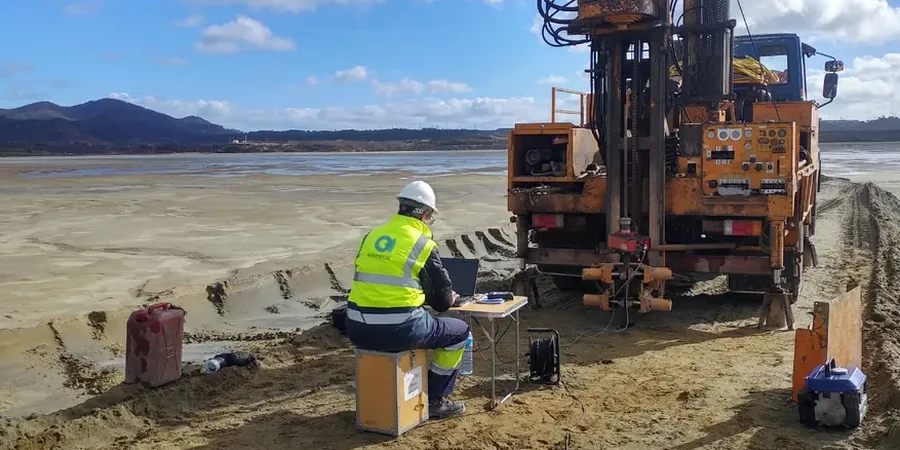

A six-story residential project on the east side of the Moira River was halted in 2023 because the generic NBCC site class didn't capture the impedance contrast we found at 18 meters depth. The limestone bedrock in Belleville sits beneath highly variable overburden, and a blanket Site Class C or D designation can miss critical amplification peaks. Our team runs microzonation campaigns that combine active and passive surface wave testing with downhole velocity profiles. When the MASW survey reveals a soft clay layer trapping energy, we refine the design spectrum using site-specific response analysis instead of the code default. For critical infrastructure, pairing microzonation with seismic refraction gives us a continuous bedrock model that the drill rig alone cannot resolve. The difference shows up in the base shear numbers that structural engineers take to the concrete design, and in Belleville's post-glacial terrain, those numbers shift more than most owners expect.
A site class map built on generic VS30 correlations can underestimate spectral ordinates by 30% when a buried soft layer traps seismic energy—we measure it, we don't guess it.
